3LPE Heat Shrink sleeve material and closures are manufactured from a thermally stabilized, ultraviolet-resistant, semi-rigid, high-density polyethylene. The 3LPE HSS backing is radiation cross-linked PE backing which provides superior abrasion, mechanical, and chemical attack resistance. And the inner surface of the sleeve is coated with a controlled thickness of a high-shear hot-melt copolymer adhesive. The high-performance adhesive provides high bond strength, high shear resistance, excellent resistance to cathodic disbondment, long-term stability and long-term corrosion protection for the linepipe joint.
FRDP weld joint Heat shrinkable sleeving enjoys good performance of sealing, wide application, easy operation and low preheating temperature, and a perfect anti-corrosion effect. It is suitable for use at the maximum design temperature of the pipeline.
Long service life: The heatshrink sleeve enjoys more than 30 years of service life and good sealing capability.

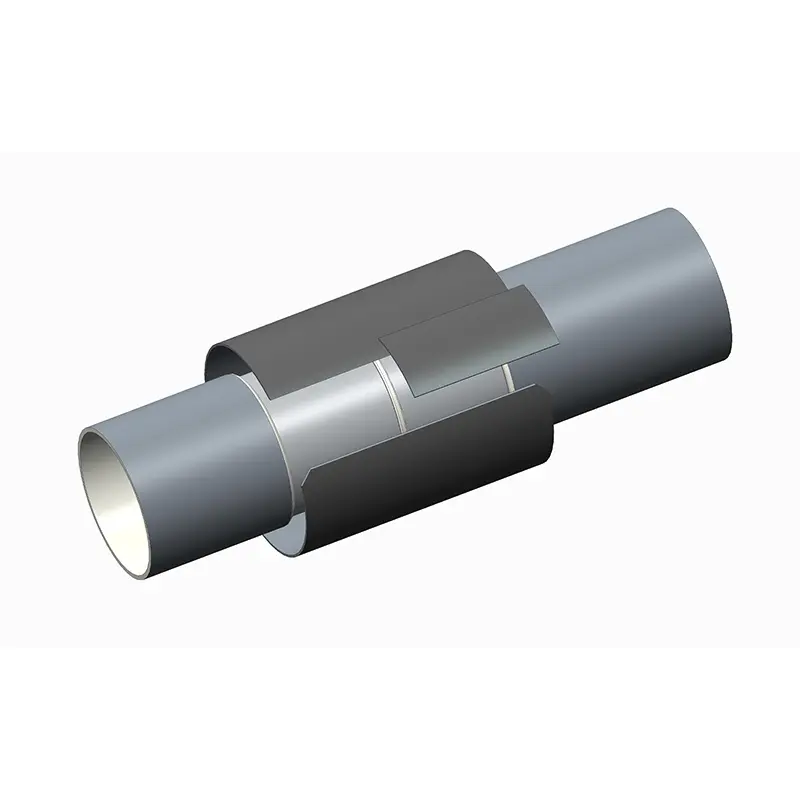

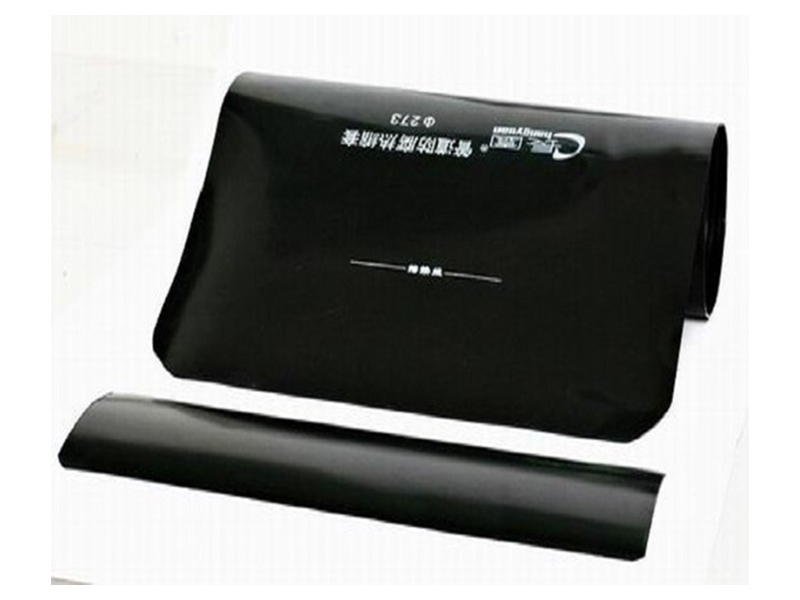

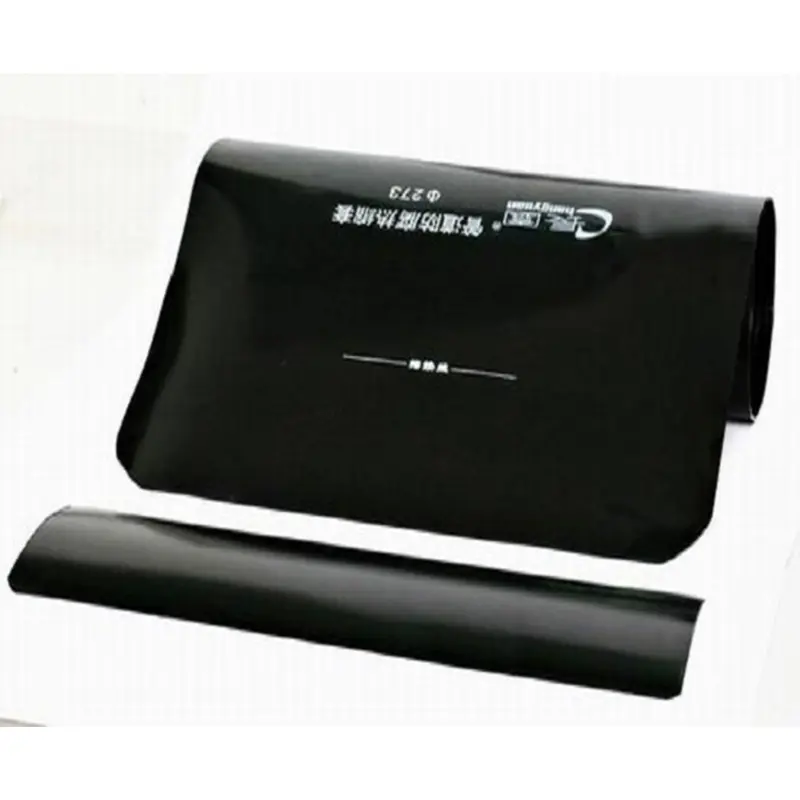

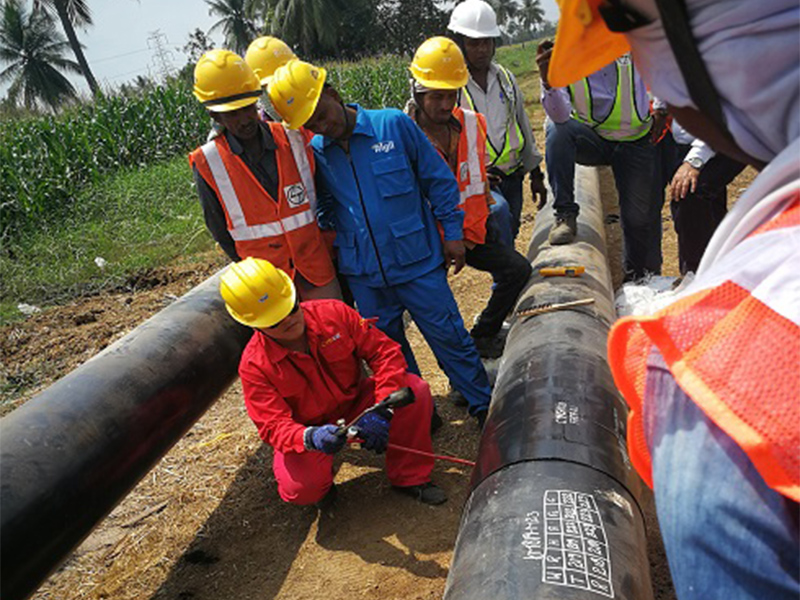

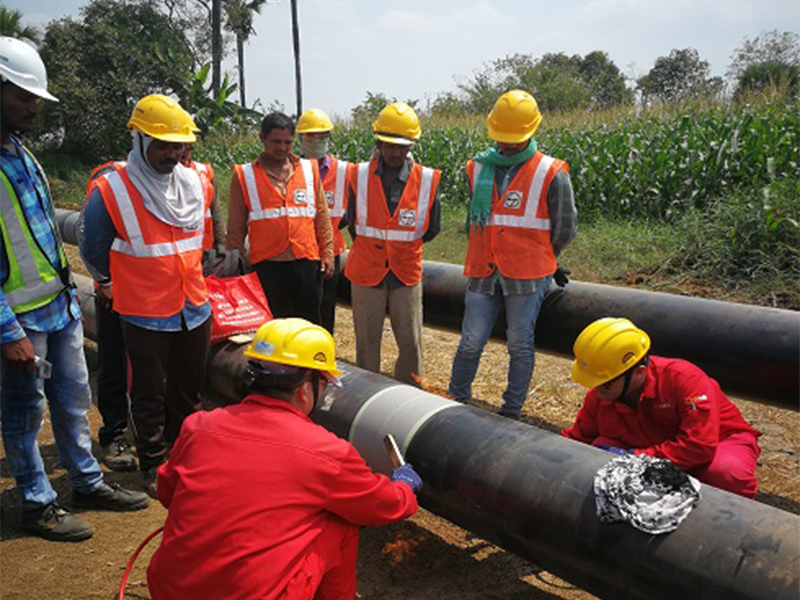

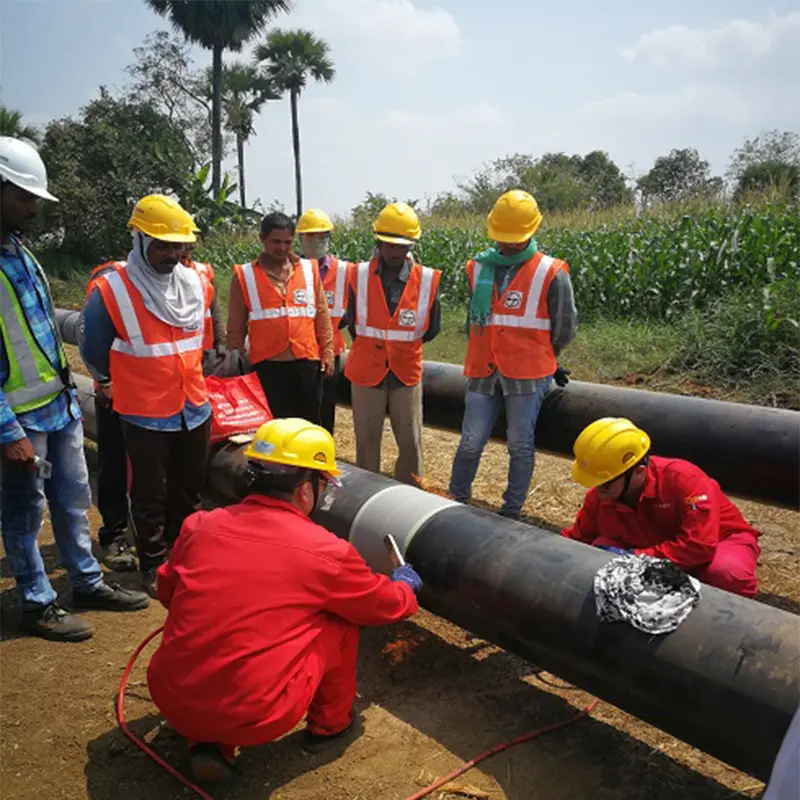

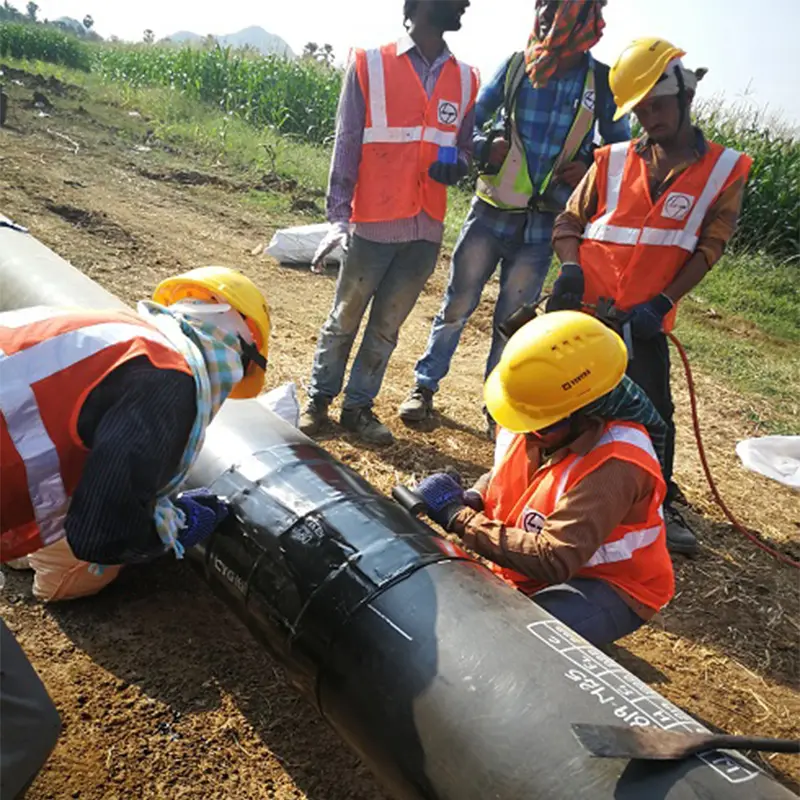

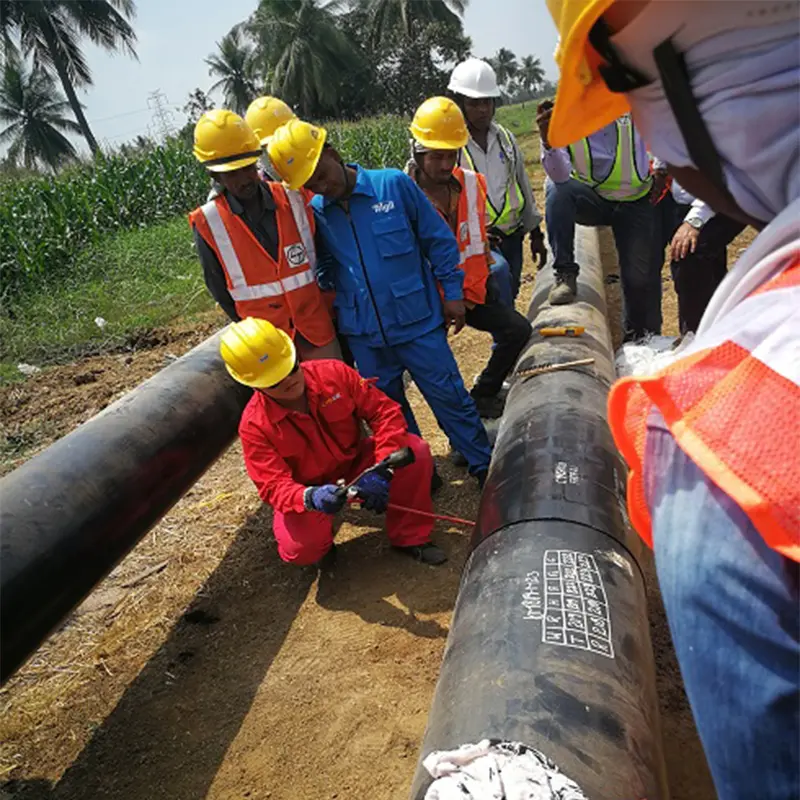

The wraparound heat shrinkable sleeve belong to open tape allows it to be applied after the pipes have been welded and cleaned, it is more convenient for application than the tubular heat shrinkable sleeve.
☑ FRDP Heat Shrink Sleeve is Germany DVGW Certified and CHINA CLASSIFICATION SOCIETY certified. The FRDP heat shrinkable sleeve can meet a variety of domestic and international standards, such as GB∕T 23257-2017, DEC, DIN30672, European Standard EN 12068, and EN ISO 21809-3:2016.
☑ The widest sleeve width can be offered is 1200mm and the max. length can be offered in 300M per roll.
☑ Strict quality control is carried out under ISO9001. Each batch of heat shrink sleeves is accompanied by a certificate stating the tests have been carried out on every batch and results are in accordance with the specification standard.
☑ With a professional R&D team and a National CNAS-accredited laboratory, customized production is available according to client-specific requirements. OEM and ODM services are offered.
| Property | Test Temp. | Unit | Requirement | Test Result | Test Method |
|---|---|---|---|---|---|
| Thickness | — | mm | ≥ 0.85 × nominal value | - | Annex B ISO21809-3 |
| Holiday detection at 5 kV/mm + 5 kV | — | — | no holiday | no holiday | Annex C ISO21809-3 |
| Impact resistance (holiday detection at 5 kV/mm + 5 kV after recovery) | 20℃ | J/mm | ≧ 7 | 8 | Annex D ISO21809-3 |
| Indentation resistance (holiday detection at 5 kV/mm + 5 kV after recovery) Residual thickness |
80℃ | N/mm² | 10.0 | 10.0 | Annex E ISO21809-3 |
| — | mm | ≧ 0.6 | 1.30 | ||
| Cathodic disbondment at 30 days | 23℃ | mm | ≦ 5.0 | 4.8 | Annex G ISO21809-3 |
| 80℃ | mm | ≦ 10 | 9 | ||
| Peel strength at 10 mm/min to pipe surface and to polyolefin plant coating | 23℃ | N/mm | ≧ 5 | 13 | Annex H.1 ISO21809-3 |
| 80℃ | N/mm | ≧ 0.3 | 0.5 | ||
| Peel strength at 10 mm/min to pipe surface and to plant coating after 100-day hot-water immersion test at Tmax limited as per Annex I | 23℃ | P100/P0 | ≧ 0.75 | ≧ 0.75 | Annex I and H ISO21809-3 |
| Lap shear strength at 10 mm/min | 23℃ | N/mm² | ≧ 3.0 | 3.8 | Annex J ISO21809-3 |
| 80℃ | N/mm² | ≧0.2 | 0.3 | ||
| Thermal ageing resistance (aged at Tmax + 20 °C) – Elongation at break (E100/E70) – Peel strength to pipe surface (P100/P70) |
23℃ | E100/E70 | ≧ 0.75 | 0.95 | Annex M ISO21809-3 |
| — | P100/P70 | ≧ 0.75 | 0.93 |
| Catalogue No. | Specification (Adhesive / Backing) | Catalogue No. | Specification |
|---|---|---|---|
| FRDP001 | FRDPΦ168×450—1.2/1.0 | FRDP007 | FRDPΦ508×500—1.5/1.0 |
| FRDP002 | FRDPΦ219×450—1.2/1.0 | FRDP008 | FRDPΦ529×500—1.5/1.0 |
| FRDP03 | FRDPΦ273×450—1.2/1.0 | FRDP009 | FRDPΦ610×500—1.5/1.0 |
| FRDP004 | FRDPΦ325×450—1.5/1.0 | FRDP010 | FRDPΦ711×500—1.5/1.0 |
| FRDP005 | FRDPΦ355×500—1.5/1.0 | FRDP011 | FRDPΦ813×500—1.5/1.0 |
| FRDP006 | FRDPΦ426×500—1.5/1.0 | FRDP012 | FRDPΦ1220×500—1.5/1.0 |
Note:
☑ Closure patch length and thickness are equal to sleeve axial length and thickness, respectively.
Closure patch width: 120 mm for pipe diameter Φ168 ～Φ355 while 150 mm for pipe > Φ355. Or offer as your request.
☑ The above specification offered above is for your reference only. The width here is width before recovery. If you need after shrinking width, pls. remark.
The design temperature, width and thickness can be offered according to special requirements.
☑ The largest width can be offered is 1200mm and the max. Length is 300M per roll. Generally speaking, we offer in pieces according to the pipe size or bulk roll as request. The ordinary length required are 10m, 20m and 30m per roll.
