OEM China Aluminum Foil Viscoelastic Tape Suppliers - Long-Term Corrosion Protection for Metal Facilities from Factory Manufacturer, Factories

Introducing our Long-Term Corrosion Protection Aluminum Foil Viscoelastic Tape, designed specifically for metal facilities. With a lifespan exceeding 30 years, this tape offers exceptional durability and protection against corrosion, making it an ideal choice for various industrial applications. Our product is primer-free, streamlining the application process for ease and efficiency, As a leading supplier in China, we take pride in our high-quality manufacturing standards. Our factory ensures that each roll of tape meets stringent quality control measures, ensuring reliability and performance in any environment. Trust our aluminum foil viscoelastic tape to safeguard your metal structures for the long haul

Product Description

Description

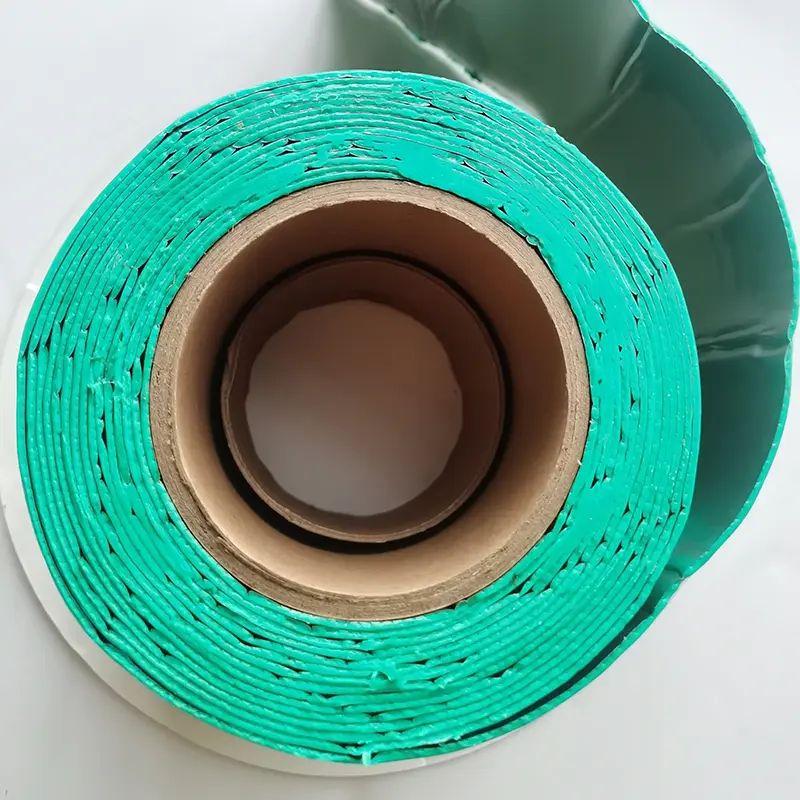

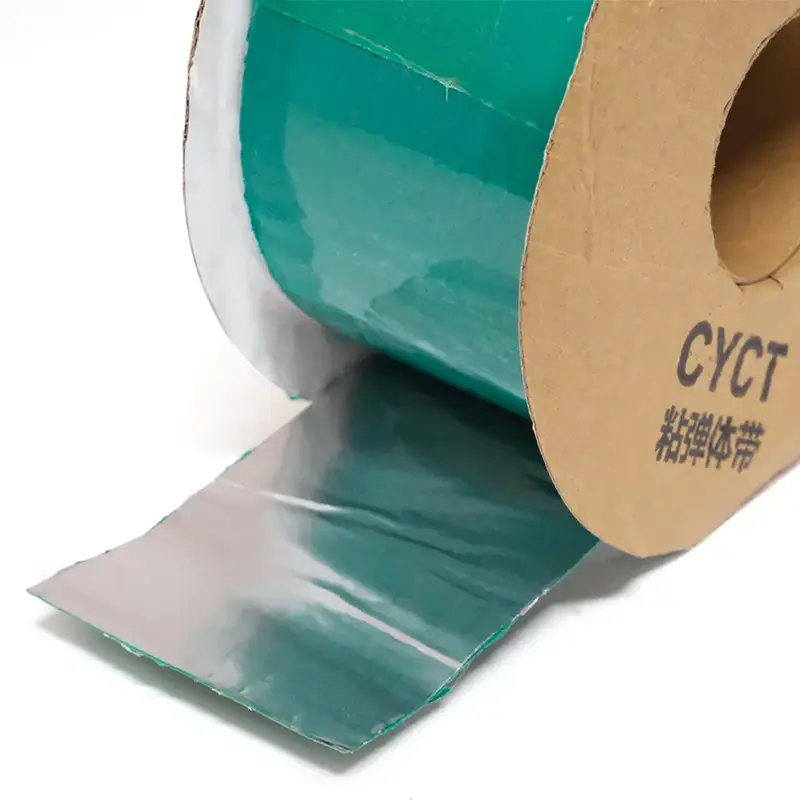

Long-Term Corrosion Protection Aluminum Foil Viscoelastic Tape for Metal Facilities (Over 30 Years), Primer-Free and Easy to apply
The aluminum foil viscoelastic tape is an upgraded corrosion protection product based on standard type viscoelastic tape. Aluminum foil visco-elastic anticorrosion tape consists of new-type high-performance visco-elastic polyolefin materials and aluminum foil. It combines the characteristics of both solid and liquid adhesive materials into one. It can provide long-term and effective anti-corrosion protection for pipelines and metal facilities. The property of visco-elastic tape will last more than 30 years under normal conditions.
Features
Simple surface preparation and directly applied on steel, PE, PP, FBE without primer.
Compatible to 3LPE, CTE-coating and asphalt.
Excellent impermeability to water and oxygen.
Perfect chemical resistance.
Excellent weather resistance mainly depends on the aluminum foil film.
Applicable temperature -30℃~60℃.
Controllable construction quality and seldom affected by environment and operator skill.
An eco-friendly material to be stored for a long time.

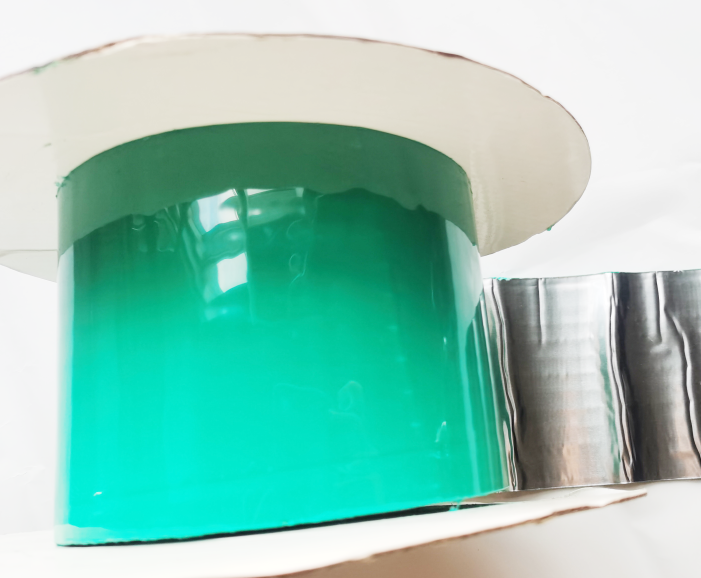

Aluminum Foil Viscoelastic Tape
The adhesive layer has the characteristics of "permanently non-hardening" and "permanently maintaining high plasticity", and can be used for above-ground pipes and flanges. The sealing corrosion protection can also be used on building roofs, equipment surfaces, etc. that are exposed to the outdoors. It can be applied in wide range of climate environment and has excellent corrosion protection performance, strong weather resistance and anti-aging capabilities.
Properties
Property Test temp Unit Requirements Test Method
Thickness - mm ≥Specified minimum value Annex B
Glass transition temperature - °C At least 20°C below minimum application temperature ISO 11357-2
Crystallization temperature - °C No evidence of crystallization ISO 11357-3
Holiday detection at 5 kV/mm + 5 kV, max. 25 kV - -- no holiday Annex C
Drip Resistance 80 °C, 48h -- No Dropping of compound Annex K
Adhesion test to steel and to PE 23 °C N/mm ≥0.04 Coverage ≥ 95 % Annex H (and M.3 and Annex I)
50°C ≥0.02
Adhesion test to steel and to PE after thermal ageing for 100 days at 95 °C 23 °C ≥0.04 Coverage ≥ 95 %
50°C ≥0.02
Adhesion test to steel and to PE after hot-water immersion for 100 days at 95 °C 23 °C ≥0.04 Coverage ≥ 95 %
50°C ≥0.02
Lap shear resistance 23 °C N/mm² ≥0.004 Coverage ≥95 % Annex I
50°C ≥0.002
Specific electrical insulation resistance RS100 23 °C Ω⋅m² ≥10⁸ Annex F
RS100/RS70 - ≥0.8
UV aging resistance (2000h) Tensile strength retention rate of base film % GB/T23257-2017 Annex J GB/T1040.3-2006
UV aging resistance (2000h) Base film tensile strain retention rate at break GB/T23257-2017 Annex J GB/T1040.3-2006
Installed sleeve
Highest design temperature —— 100 ——
Thickness —— mm backing≥1.0 adhesive≥1.5 ISO21809-3 Appendix A
Cathodic disbandment, 28d 23℃ mm 7.0 ISO21809-3
95℃ mm 15.0
Peeling strength (10mm/min) To steel with primer 23℃ N/mm 9.8 ISO21809-3 Appendix D
110℃ 2.4
To coating layer 23℃ 6.4
110℃ 1.4
28d, Tmax, peeling strength after hot water soaking (10mm/min) To steel with primer 23℃ N/mm 8.5 ISO21809-3 Appendix I
To coating layer 5.5
Frequently Asked Questions
Q1: Does aluminum foil viscoelastic tape require primer before application?
No, one of the key advantages of aluminum foil viscoelastic tape is that it can be directly applied on steel, PE, PP, and FBE surfaces without the need for primer, making installation simpler and faster.
Q2: What is the expected service life of this corrosion protection tape?
Under normal conditions, the visco-elastic properties of the tape will last more than 30 years, providing long-term and effective anti-corrosion protection for pipelines and metal facilities.
Q3: What temperature range can this tape withstand?
The aluminum foil viscoelastic tape is applicable in temperatures ranging from -30℃ to 60℃, with a highest design temperature of 100℃ for installed sleeves, making it suitable for various climate environments.
Q4: Can this tape be used on above-ground pipelines and outdoor equipment?
Yes, the tape is specifically designed for above-ground pipes, flanges, building roofs, and equipment surfaces exposed to outdoor conditions. It offers excellent weather resistance and anti-aging capabilities thanks to the aluminum foil film.
Q5: Is the tape compatible with existing coating systems?
Yes, the aluminum foil viscoelastic tape is compatible with 3LPE, CTE-coating, and asphalt systems, making it versatile for various pipeline protection applications and easy to integrate with existing infrastructure.
Q6: What makes this tape environmentally friendly?
The tape is an eco-friendly material that can be stored for a long time without degradation. Its "permanently non-hardening" adhesive layer maintains high plasticity throughout its service life, and the installation process requires minimal surface preparation, reducing environmental impact.
