Home > Hot Products > China High-Performance Bend Restrictor from China Factory - Reliable Protection by Trusted Suppliers Manufacturers, Factories
China High-Performance Bend Restrictor from China Factory - Reliable Protection by Trusted Suppliers Manufacturers, Factories
China High-Performance Bend Restrictor from China Factory - Reliable Protection by Trusted Suppliers Manufacturers, Factories
1 / 2
China High-Performance Bend Restrictor from China Factory - Reliable Protection by Trusted Suppliers Manufacturers, Factories
China High-Performance Bend Restrictor from China Factory - Reliable Protection by Trusted Suppliers Manufacturers, Factories

China High-Performance Bend Restrictor from China Factory - Reliable Protection by Trusted Suppliers Manufacturers, Factories

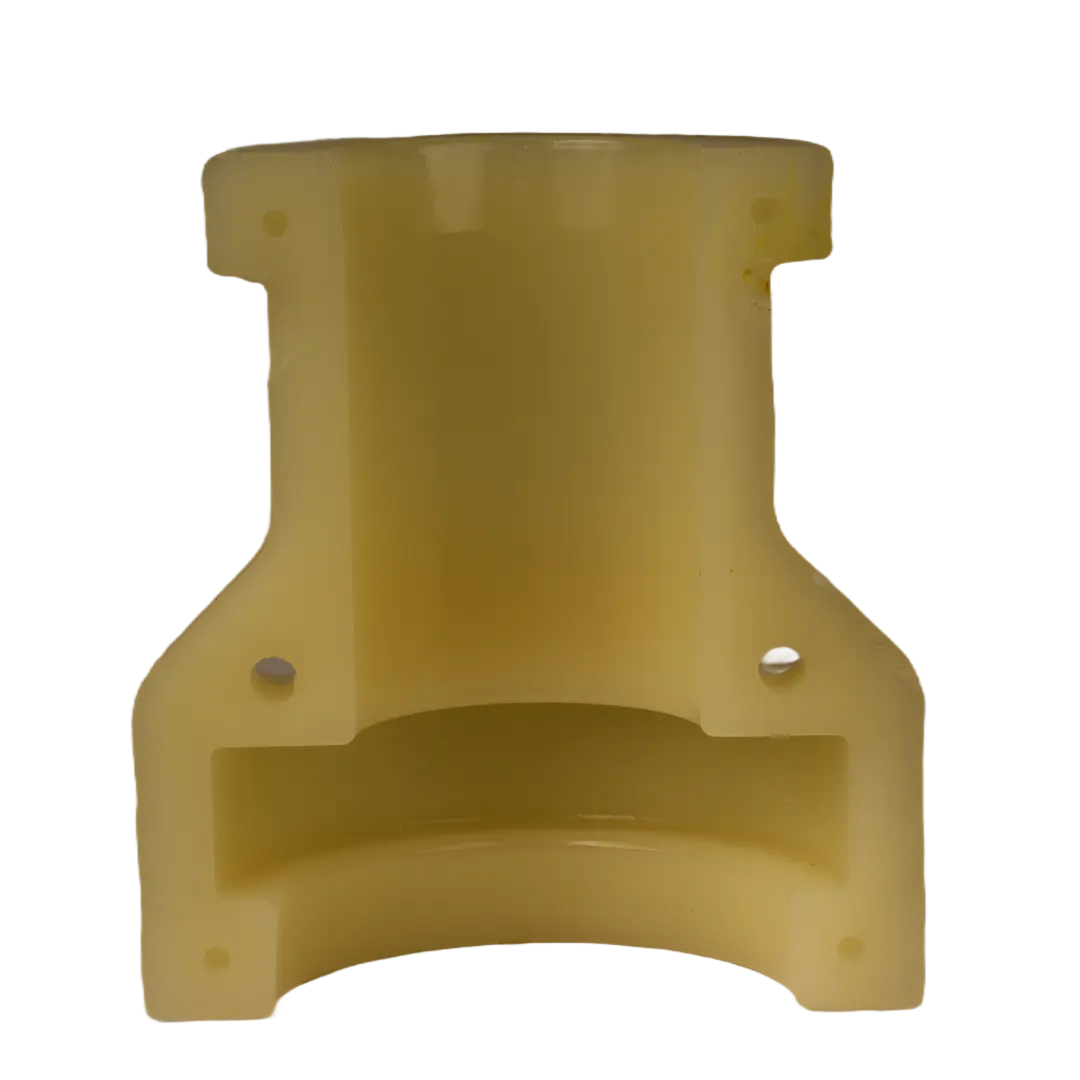

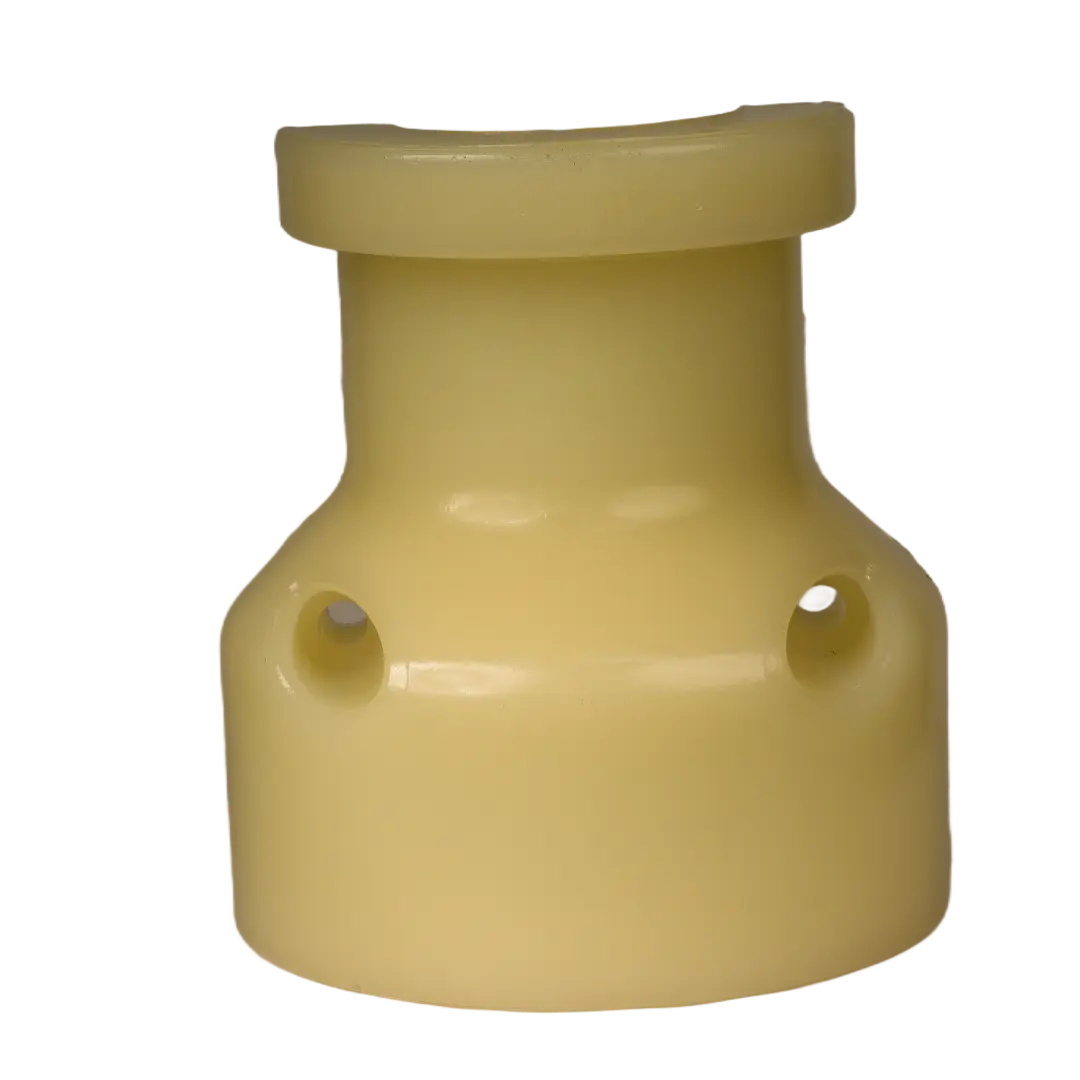

Introducing our innovative clamshell split structure, crafted from high-performance polyurethane, perfect for businesses seeking reliable bend-limiting protection. Our modular design offers exceptional adaptability, making it a top choice among China suppliers and factory manufacturers, Utilizing a super-elastic MDI polyurethane system, this product features adjustable stiffness and multi-environment resistance. Rigorous material tests ensure compliance with API standards and certifications from BV, DNV, and other esteemed classification societies, Our solution excels in extreme weather conditions, combining a lightweight profile with impressive load-bearing capacity. Its integrated multi-functional protection makes it a versatile option for various applications. Choose our high-quality polyurethane products and partner with a leading supplier from China today!
Send Inquiry

Product Description

Features

  • Complies to ISO 21809-3
  • Excellent adhesion to PP, PE, FBE, concrete, glass & steel
  • Resistant to salts, acids & alkalis
  • Protection of voids and narrow spaces
  • Non-toxic to the environment, safe to handle

Core Technical Parameters

Item Standard Reference Customizable Range
Suitable cable/pipe OD 50mm ~ 500mm Fully customizable per cable/pipe size
Locked bend radius ≥ 20 × OD Customizable to match minimum safe bend radius
Design life 25 years 10–30 years
Working water depth 0–1000m Ultra-deepwater models available
Main material High-performance polyurethane (PU) Reinforced PU, special weather-resistant materials
Fastener material Stainless Steel 2507 Stainless steel, titanium alloy, etc.
Operating temperature -30°C ~ 80°C Extreme high/low temperature models available

Material Test Standards

Abrasion resistance ISO 7784-2, ASTM D4060, BS 903-A9, DIN 53516
Compression properties ISO 604, ASTM D695, ISO 7743
Density ASTM D792, ISO 1183
Hardness ISO 868, ASTM D2240, BS 2782 Part 3 Method 365B
Heat deflection temperature ISO 75-1, ISO 75-2, ASTM D648
Impact toughness ISO 179-1, ISO 179-2, ISO 180, ASTM D256
Shear properties ISO 1827, ASTM D732
Tensile properties ISO 527-1, ISO 527-2C, ASTM D638, ISO 37
Creep ASTM D2990, ISO 899-1

Application Scenarios

Offshore Wind Power (Core Application)
  • Cable protection at J-tube/I-tube openings of offshore wind turbine foundations
  • Inlet/outlet interface protection for offshore substations
  • Protection at connections between dynamic cables and platforms of floating wind turbines
  • Protection at transition sections between cable landing areas and seabed
  • Standard protective component for offshore wind power cable systems in China
Offshore Oil & Gas Development
  • Protection at connections between flexible risers and rigid structures (subsea wellheads, platform manifolds)
  • Subsea umbilical termination protection
  • Flexible hose interface protection for oil pipelines
  • Suitable for high-pressure, high-corrosion, high-dynamic-load conditions in deepwater oil & gas development

Frequently Asked Questions

Q1: What is the typical lifespan of this protection system?
The standard design life is 25 years, with customizable options ranging from 10 to 30 years depending on specific application requirements and environmental conditions.
Q2: What cable or pipe diameters can this system accommodate?
The system is suitable for cable/pipe outer diameters ranging from 50mm to 500mm, with full customization available to match specific cable or pipe sizes.
Q3: Can this system be used in deepwater applications?
Yes, the standard working water depth is 0-1000m, with ultra-deepwater models available for greater depths in offshore oil & gas and wind power applications.
Q4: What materials are used and why?
The main material is high-performance polyurethane (PU) for excellent flexibility and durability, with fasteners made from Stainless Steel 2507 for superior corrosion resistance. Alternative materials like titanium alloy are available for extreme conditions.
Q5: Is this system compliant with international standards?
Yes, the system complies with ISO 21809-3 and has been tested according to multiple international standards including ISO, ASTM, BS, and DIN specifications for various material properties.
Q6: What temperature range can this protection system withstand?
The standard operating temperature range is -30°C to 80°C, with extreme high/low temperature models available for specialized applications requiring extended temperature tolerance.
