◎ Construction: three-layer system.
◎ First layer: liquid epoxy, solvent-free, two-component.
◎ Second layer: high shear strength hot-melt adhesive.
◎ Third layer: radiation cross-linked, high density polyethylene, fiber reinforced composite structure.

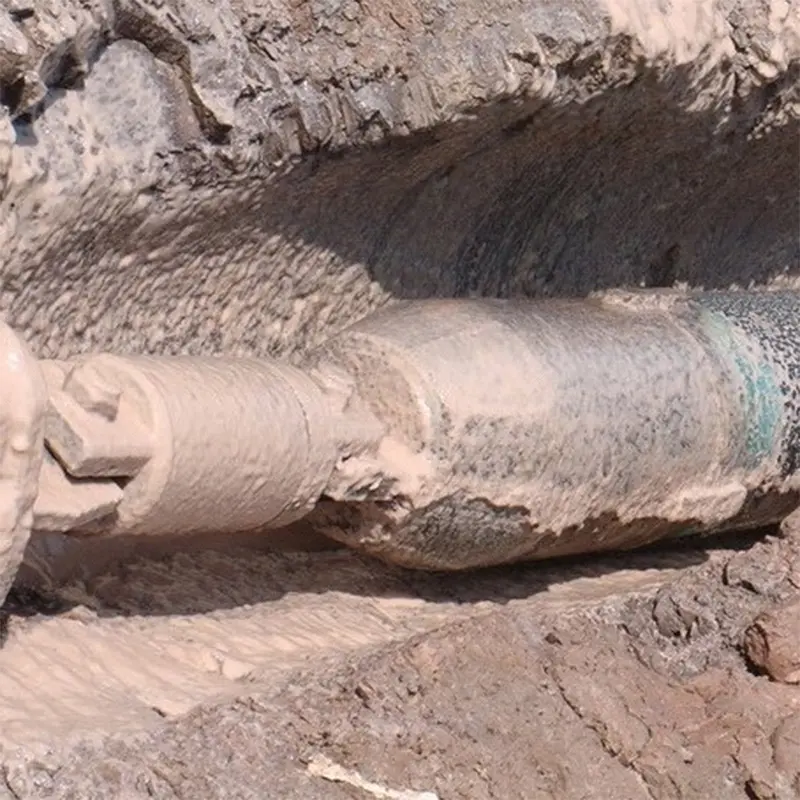

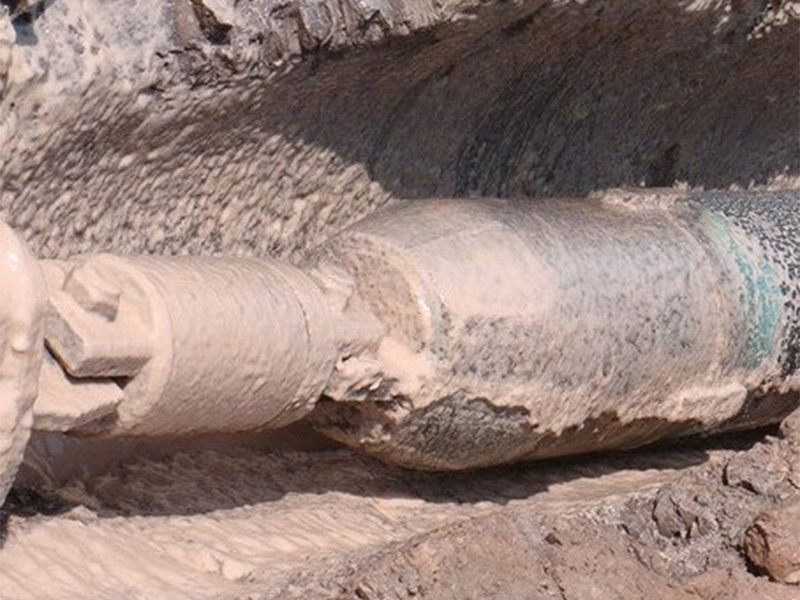

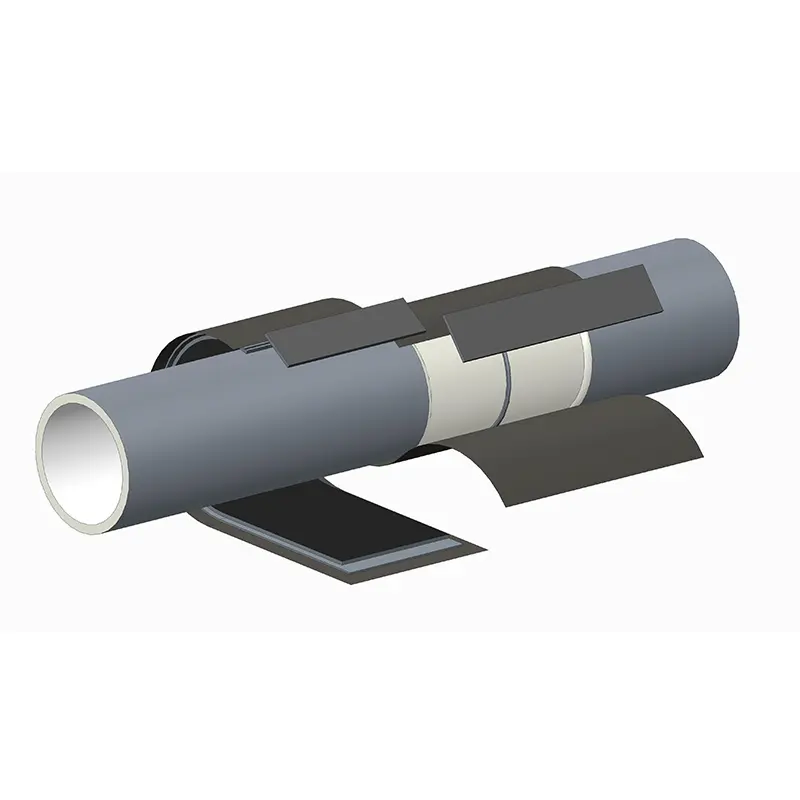

◎ Additional component: Wear Cone as extra protection against pull-through forces, of the same construction as the main sleeve.
| Properties | Typical Value | Test Method | |
| Backing | |||
| Burst Strength (N) | 3026 | EN 12068 | |
| Volume Resistivity (Ω·cm) | 3.6*10^15 | ASTM D 257 | |
| Dielectric Strength (KV) | 32 | ASTM D 149 | |
| Adhesive | |||
| Ring & Ball Softening Point (°C) | 111 | ASTM E 28 | |
| Lap Shear (MPa) (23℃) | 7.11 | ISO 21809-3 | |
| Installed System | |||
| Holiday Test (kV) | 15 | EN 12068 | |
| Peel Strength to steel (N/mm) | 23℃ | 11.06 | ISO 21809-3 |
| 65℃ | 2.1 | ISO 21809-3 | |
| Indentation Resistance (mm) | ≥0.6 | EN 12068 | |
| Impact Strength (23±3) (J) | ≥15 | EN 12068 | |
| Cathodic Disbonding Resistance 28 day, 1.5V (mm) (23±3°C) | 2.05 | ISO 21809-3 | |
| Hot Water Immersion (120d, 65°C) | No delaminating, no blisters or water ingress | ASTM D 870 | |
| Specification | Circumferential length of sleeve | Closure patch width | Wear cone width |
| FRDK159*500-1.5/1.0 | 680 | 100 | ≥150 |
| FRDK219*500-1.5/10 | 900 | 120 | ≥150 |
| FRDK273*500-1.5/10 | 1070 | 120 | ≥150 |
| FRDK325*500-1.5/10 | 1260 | 120 | ≥150 |
| FRDK355*500-1.5/10 | 1360 | 120 | ≥150 |
| FRDK426*500-1.5/10 | 1600 | 150 | ≥200 |
| FRDK508*500-1.5/10 | 1900 | 150 | ≥200 |
| FRDK529*500-1.5/10 | 1940 | 150 | ≥200 |
| FRDK610*500-1.5/10 | 2220 | 200 | ≥200 |
| FRDK711*500-1.5/10 | 2560 | 200 | ≥200 |
| FRDK813*500-1.5/10 | 2880 | 200 | ≥250 |
| FRDK1219*500-1.5/10 | 4180 | 200 | ≥250 |
