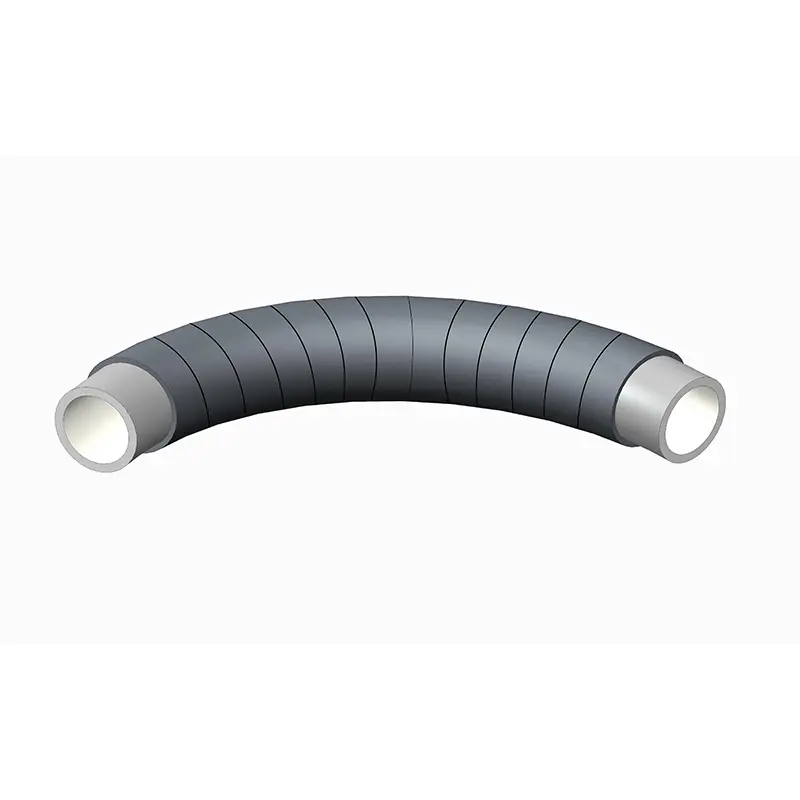

Introducing CYCT FRDS Heat-Shrinkable Tape, a high-performance solution designed for superior protection and repair. Manufactured in China, our heat-shrinkable tape features a radiation-cross-linked polyethylene backing combined with a thermosensitive adhesive. This three-layer tape is engineered to form a strong bond with various substrates, including steel, fusion-bonded epoxy (FBE), and plant-applied polyethylene (PE), As a leading supplier and factory in the industry, we ensure that CYCT FRDS heat shrinkable wrapping tapes offer exceptional flexibility and ease of use. They are particularly ideal for safeguarding oil, gas, and water pipelines, along with fittings, elbows, bends, and other irregular shapes. Trust in our expertise to provide reliable, high-quality solutions for all your pipeline protection needs
Send Inquiry

Product Description

Construction

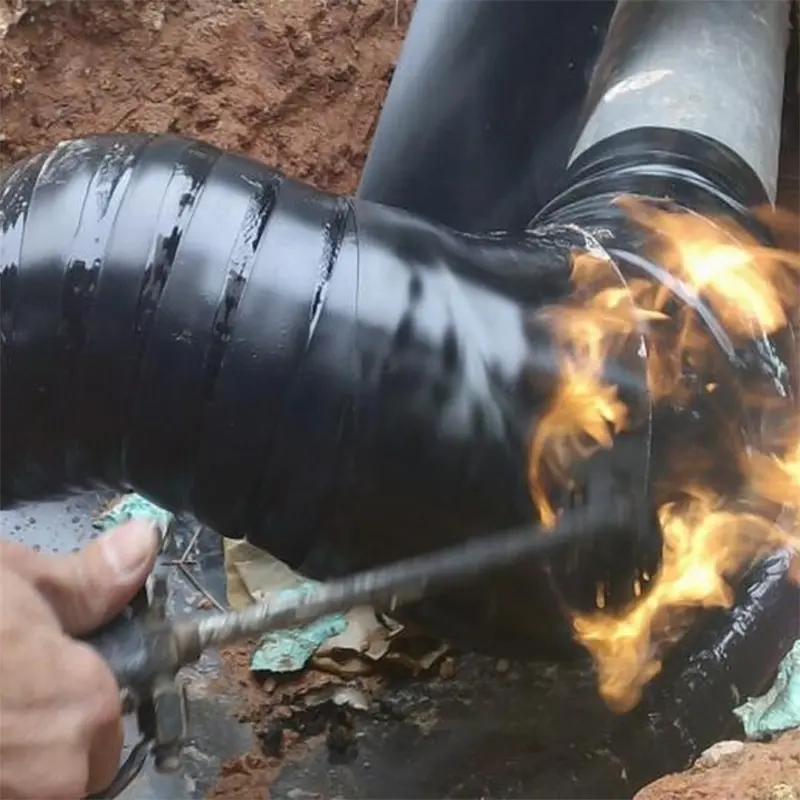

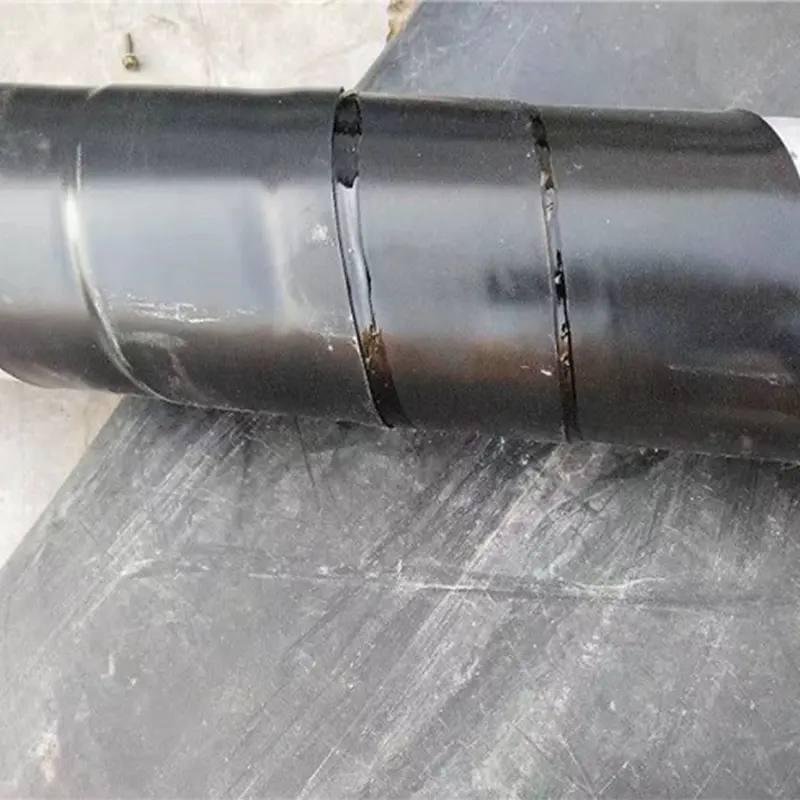

The installation is carried out directly on the cleaned and prepared pipe surface without any primer. During installation, heat shrink sleeve in 30m is to be wrapped spirally around the bend with 50% overlap. The carrier is heated and shrinks tightly around the substrate; at the moment, the sealing adhesive melts and is forced into all surface irregularities, forming a thorough coating and a complete bond with the substrate.

Technical Performance

Property Unit Requirement Test result Test Method
Impact resistance J ≥15 ＞15 Appendix H
Indentation resistance at 60 ℃
-residual thickness		 mm ≥ 0.6 1.0 Appendix G
Specific electrical insulation
resistance Rs100
Rs100/Rs702
Ωˑm2
-
≥108
≥0.8
5x1010
1.1		 Appendix J
Cathodic disbondment resistance
- at 23 ℃
- at 60 ℃
mm
mm
≤20
-		 3.5
8		 Appendix K
Peel strength layer to layer
- at 23 ℃
-- inner layer/ inner layer
-- outer layer/ inner layer
-- outer layer/ outer layer
- at 60 ℃
--inner layer/ inner layer
-- outer layer/ inner layer
-- outer layer/ outer layer		 N/mm

≥1.5
≥1.5
≥0.2

≥0.2
≥0.2
≥0.2

15
17
12

1.4
1.5
1.3		 Appendix B
Peel strength
To pipe surface at 23 ℃
- at 60℃
To factory coating
-- PE at 23 ℃
-- PE at 60 ℃
-- EP at 23 ℃
-- EP at 60 ℃		 N/mm ≥1.0
≥0.1

≥0.4
≥0.04
≥0.4
≥0.04		 10.0
1.2

8.7
1.8
15.2
1.4		 Appendix C
Lap shear strength at 60 ℃
-- to pipe surface
-- to PE-factory coating
-- to EP-factory coating		 N/mm2
≥0.05
≥0.05
≥0.05
0.8
0.9
0.7		 Appendix D
Resistance to thermal ageing（100d/80℃）
-ratio of
--tape strength
--elongation at break
--peel strength layer to layer
inner/inner；
outer/inner；
outer/outer
--peel strength to pipe surface		 -

-


-



-		 1.25≥S100/S0≥0.75
S100/S70≥0.8
1.25≥E100/E0≥0.75
E100/E70≥0.8
P100/PT≥0.75
P100/P70≥0.8
A100/AT≥0.75
A100/A70≥0.8		 0.88
0.87
0.78
0.82
0.88
0.90
0.84
0.88		 Appendix E
Ultraviolet irradiation resistance
-ratio of
--elongation at break
--tape strength		 -
1.25≥E100/E0≥0.75
1.25≥S100/S0≥0.75
0.91
0.85		 Appendix F

Technical Data

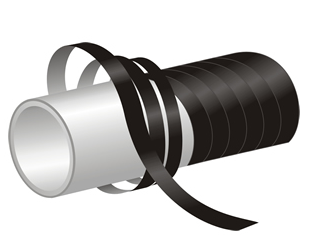

Heat Shrink Sleeve Technical Dimensions and Specifications

Ordering Information

  • Range for available dimension: Detailed below for roll measurements.

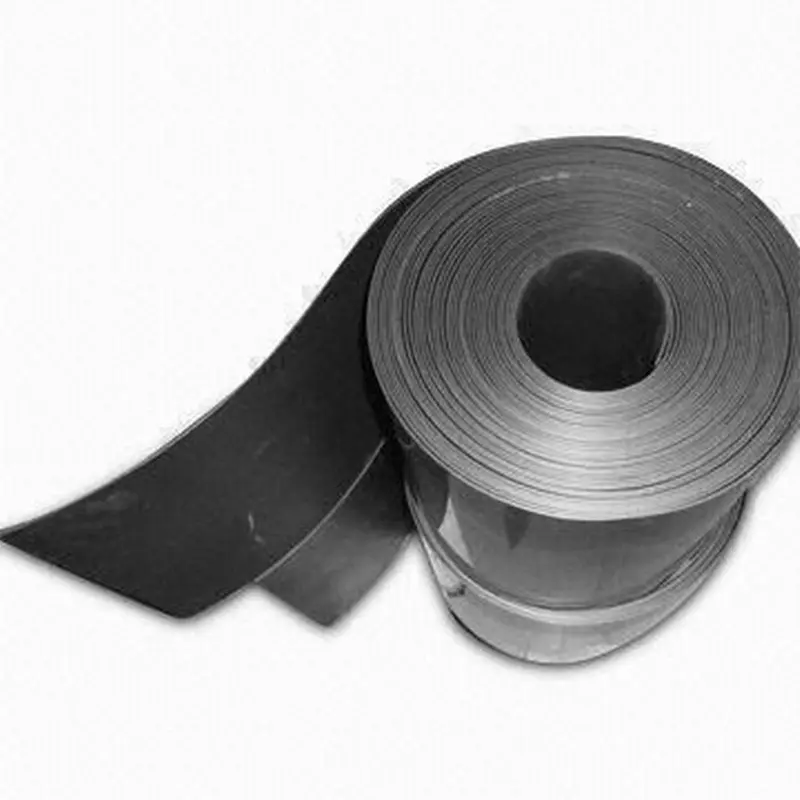

  • Sleeve length Length of PE shrink sleeves is 30m per roll.
  • Sleeve width 50mm, 75mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 520mm, 550mm, 600mm width.
  • Sleeve thickness 1.8mm, 2.0mm, 2.2mm, 2.5mm, 2.8mm, 3.0mm and 3.2mm thickness.
  • Primer thickness Wet film and dry film options available: 120um, 150um, 200um, 300um and 400um primer thickness.

Frequently Asked Questions

What is the installation process for heat shrink sleeves?

The installation is carried out directly on the cleaned and prepared pipe surface without any primer. The heat shrink sleeve is wrapped spirally around the bend with 50% overlap, then heated to shrink tightly around the substrate while the sealing adhesive melts and bonds with the surface.

What are the available dimensions for PE shrink sleeves?

PE shrink sleeves are available in 30m length per roll. Width options range from 50mm to 600mm (including 50mm, 75mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 520mm, 550mm, 600mm). Thickness options include 1.8mm, 2.0mm, 2.2mm, 2.5mm, 2.8mm, 3.0mm, and 3.2mm.

What is the minimum impact resistance requirement?

The minimum impact resistance requirement is ≥15J according to Appendix H testing method. Our product test results show performance exceeding 15J, ensuring excellent protection against mechanical impact.

What primer thickness options are available?

We offer two types of primer application: wet film and dry film. Available primer thickness options include 120um, 150um, 200um, 300um, and 400um to meet different project requirements.

How does the product perform in terms of cathodic disbondment resistance?

At 23°C, the cathodic disbondment resistance is 3.5mm (requirement ≤20mm), and at 60°C it is 8mm. These results demonstrate excellent adhesion performance under cathodic protection conditions, as tested according to Appendix K.

What is the peel strength to pipe surface?

The peel strength to pipe surface at 23°C is 10.0 N/mm (requirement ≥1.0 N/mm) and at 60°C is 1.2 N/mm (requirement ≥0.1 N/mm). This ensures strong and reliable bonding between the sleeve and the pipe substrate across different temperature conditions.
