OEM GFRP Reinforcement and Repair for Pipeline Defects Manufacturer, Factory

CYG Changtong GRRP is designed for pipe defects likle Corrosion defects, mechanical damage, weld defects, etc., and it can be used for pressure enhancement of pipelines without defects too.

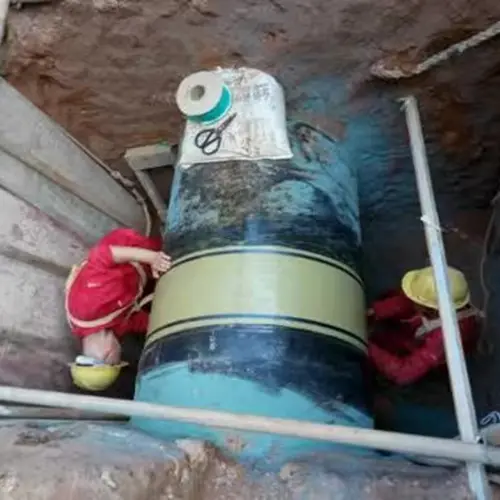

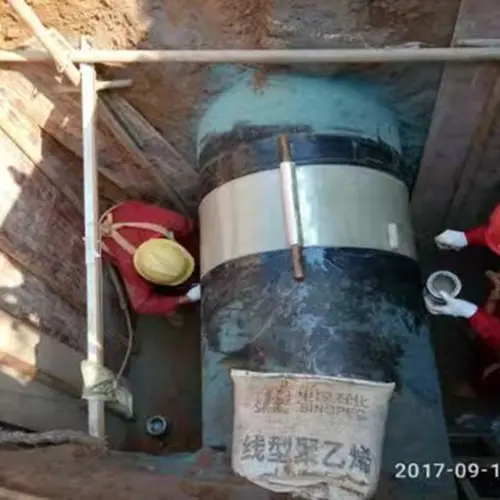

The wet wrap method involves, during defect repair, first filling the defective area with filler material. Then, high - strength fiber composites, composed of high - strength fiber cloth and adhesive, are manually wet - wrapped around the pipeline. Once the high - strength fiber composite material cures, it exhibits extremely high tensile strength and elastic modulus, which can effectively control the deformation of the pipeline at the defective area, thus achieving reinforcement and repair of pipeline defects. Its strength fully meets the requirements of the international standard ISO TS 24817. Therefore, the wet wrap method is more highly recommended for pipeline defect repair.

Send Inquiry

Product Description

viscoelastic coating system

Learn More

Frequently Asked Questions

Q What is a viscoelastic coating system?

A viscoelastic coating system is a specialized, non-crystalline, monolithic viscous polymer-based corrosion prevention system designed for protecting buried or exposed steel structures and pipelines.

Q What are the primary benefits of using viscoelastic coatings?

These systems provide exceptional adhesion, immediate corrosion protection, and self-healing properties. They are completely impermeable to water and oxygen, ensuring long-term structural integrity.

Q How does the self-healing property of viscoelastic materials work?

Due to its viscous liquid-like behavior, the coating flows into minor damages, punctures, or voids autonomously, continuously resealing itself to prevent moisture infiltration.

Q What surface preparation is required before application?

Viscoelastic coating systems require minimal surface preparation compared to conventional coatings. Generally, wire brushing to remove loose rust and dust is sufficient, without the need for abrasive blasting.

Q Is a mechanical outer wrap required over the viscoelastic layer?

Yes, a protective outer wrap (such as a PE, PVC, or fiberglass outer tape) is typically applied over the viscoelastic layer to protect it from soil stress and mechanical damage during backfilling.
